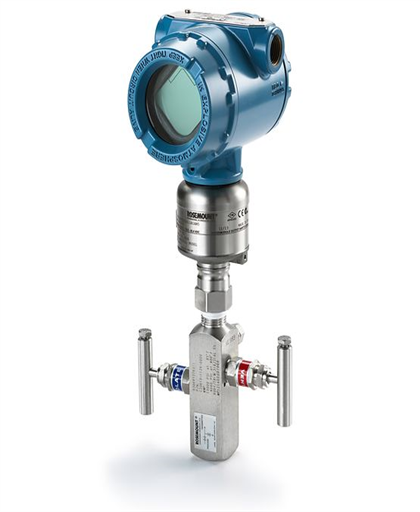

Rosemount 3051S2TG5A2E11A1AM5 Pressure Transmitters

Output

Two-wire 4-20 mA is user-selectable for linear or square root output. Digital signal based on HART

Process Flange

Carbon Steel, SST

Accuracy

3051S_CD/CG, Ranges 2-4:

Classic: +0.035% of span, For spans less than 10:1: ±[0.015 + 0.005(URL / Span)]% of span

Ultra: +0.025% of span, For spans less than 10:1: ±[0.005 + 0.0035(URL / Span)]% of span

Ultra for Flow(3051S_CD Only, Ranges 2-3): +0.04% of reading up to 8:1 DP turndown from URL, or ±[0.04 + 0.0023(URL / Reading)]% of reading to 200:1 DP turndown from URL

3051S_CD/CG, Range 5:

Classic: +0.065% of span, For spans less than 10:1, ±[0.015 + 0.005(URL / Span)]% of span

Ultra: +0.05% of span, For spans less than 10:1, ±[0.005 + 0.0045(URL / Span)]% of span

3051S_CD/CG, Range 1:

Classic: +0.10% of span, For spans less than 15:1, ±[0.025 + 0.005(URL / Span)]% of span

Ultra: +0.09% of span, For spans less than 15:1, ±[0.015 + 0.005(URL / Span)]% of span

3051S_CD, Range 0:

Classic: +0.10% of span, For spans less than 2:1: ±0.05% of URL

Ultra: +0.09% of span, For spans less than 2:1: ±0.045% of URL

3051S_CA, Ranges 1-4:

Classic: +0.035% of span, For spans less than 10:1: ±[0.0065(URL / Span)]% of span

Ultra: +0.025% of span, For spans less than 10:1: ±[0.004(URL / Span)]% of span

3051S_CA, Range 0:

Classic: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span

Ultra: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span

Range

051S_CA: 0-0.167 to 0-4000 psia

3051S_CD: 0-0.01 in H2O to 0-2000 psid

3051S_CG: 0-8.3 in H2O to 2000 psig

Power

3051S: 10.5-42.4 V dc with no load

3051S with Advanced HART Diagnostic Suite: 12-42.4 V dc with no load

Process Wetted Material

316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Materials

Sensor Wetted Parts: 316L SST, Hastelloy, Monel, Tantalum, Gold-plated SS, Gold-plated Monel

Sensor Fill Fluid: Silicone, Inert (Halocarbon)

Coplanar and Traditional Flanges and Adapters: Cadmium and Nickel-plated CS, 316 SST, Hastelloy, Monel
